Home>Products>ESD Plastic Sheet>ESD DurostoneESD Synthetic Sheet Composite Sheet for Reflow Pallet Durostone

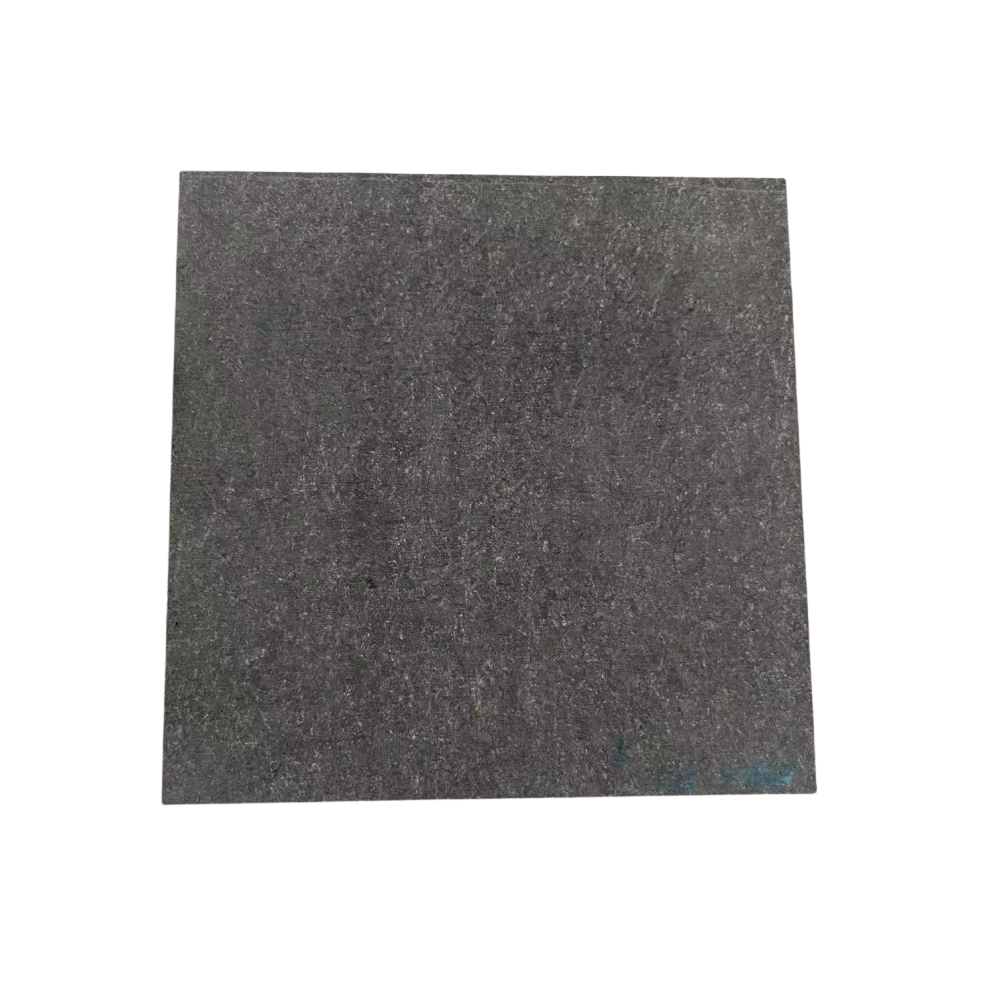

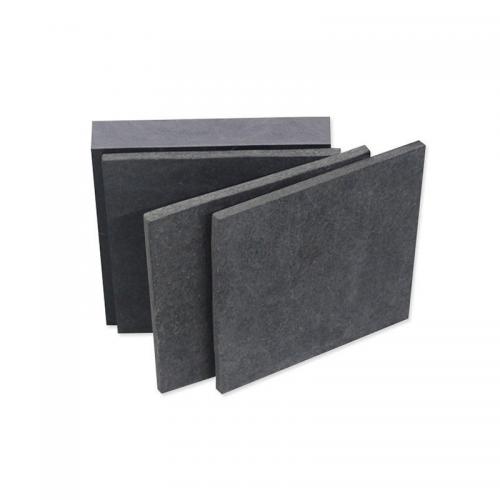

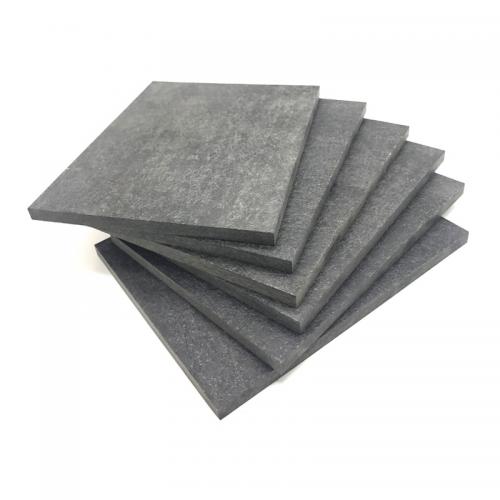

ESD Synthetic Sheet Composite Sheet for Reflow Pallet Durostone
item No :
Thickness: 3,4,5,6,8,10,12,15,20mmSize: 1020 x 1220 mm/1220 x 2440 mm
Durostone Anti-Static Composite Material for Wave and Reflow Soldering Process
Thickness
3,4,5,6,8,10,12,15,20mm
Size
1020 x 1220 mm/1220 x 2440 mm
Material
Fiberglass mat, epoxy resin
Density
1.95g/cm3
Surface Resistance
10^6-10^9 ohm
Rated Voltage
200V
Thickness
3,4,5,6,8,10,12,15,20mm
Size
1020 x 1220 mm/1220 x 2440 mm
Material
Fiberglass mat, epoxy resin
Density
1.95g/cm3
Surface Resistance
10^6-10^9 ohm
Rated Voltage
200V
Durostone Anti-Static Composite Material for Wave and Reflow Soldering Process
It is designed and developed from glass fiber and resin compound mainly for the different needs of the circuit board mounting process.
It can be manufactured into a tin furnace fixture and an SMT pallet fixture through CNC precision processing. It has been
proven to be suitable for wave soldering, SMT, and semiconductor processes.
proven to be suitable for wave soldering, SMT, and semiconductor processes.
It can be machined to the precision required by each process and maintain its flatness during continuous use. The low thermal conductivity of the material can prevent the substrate from shrinking. Ensure the quality of reflow.
